HDPE Plastic Board Making Machine

PP PE Board Application

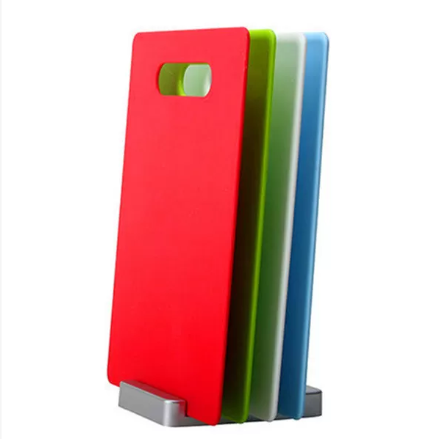

HDPE plastic sheet has a wide range of applications and is one of the indispensable materials in many industries. In the chemical industry, it can be used to make linings or parts of various chemical pipelines, storage tanks, reactors and other equipment. With its excellent corrosion resistance, it can resist the erosion of various chemical substances such as acids, alkalis and salts, extend the service life of equipment and reduce maintenance costs; in the food industry, it can be used to produce food packaging containers, turnover boxes, processing cutting boards, etc. Its non-toxic, tasteless, hygienic and safe characteristics meet the food grade use standards, providing reliable guarantees for the storage, transportation and processing of food; in the home appliance industry, it can be used to make insulation parts and shell protective layers of home appliances, which play the role of insulation, waterproofing and moisture-proofing, and improve the safety and reliability of home appliances; the electronics industry uses its good insulation and mechanical properties to manufacture packaging materials, brackets, insulation boards, etc. for electronic components to protect the safety of electronic components during production, transportation and use; in addition, in the packaging field, it can also be used to produce various packaging materials such as packaging boxes, cushioning pads, protective films, etc., providing a variety of options for product packaging and protection.

Machine Introduction

Using well-known brand core components: the motor is SIEMENS, the inverter is ABB, the contactor is Schneider, and the temperature controller is Omron. These high-quality components provide a solid guarantee for the stable operation of the machine.

Special screw design: The unique screw structure can effectively improve the plasticizing effect of plastics, make the plastics more evenly mixed, and thus improve product quality. At the same time, the design can also greatly increase production, up to 800 kg per hour, effectively improving production efficiency while ensuring product quality.

Optimized electrical design and automatic control: The carefully optimized electrical system can achieve automatic adjustment and precise control of the production process. With the advanced PLC control system and intuitive touch screen operation interface, it greatly reduces the dependence on manual operation experience, reduces quality problems caused by human operation errors, and improves the accuracy and stability of the overall production process.

Energy saving and environmental protection: Reasonable system design enables the machine to effectively save energy and reduce energy consumption costs during operation. At the same time, the entire production process complies with environmental protection standards, generates less waste, and is recyclable, which helps companies achieve green production goals.

Comprehensive after-sales service: The manufacturer not only provides a 1-year quality guarantee, but also promises to send a professional engineer team to install, debug and operate the equipment after it arrives at the customer's factory to ensure that customers can master the use of the equipment. In the subsequent use process, if the customer has further needs, the manufacturer can still arrange engineers to provide technical support to solve the customer's worries.

PP PE Board Making Machine List

No.	Machine List	Qty
PP PE Board Making Machine
1	Loader	1 Set
2	Single Screw Extruder	1 Set
3	Hydraulic Screen Changer	1 Set
4	Mould	1 Set
5	Calender Unit	1 Set
6	Calender Roll Temperature Control Device	1 Set
7	Cooling Unit	1 Set
8	Haul Off	1 Set
9	Fixed-Length Cutter	1 Set
10	Stacker	1 Set
Auxiliary Machines
11	Crusher	1 Set
12	Mixer	1 Set
13	Chiller	1 Set

PP PE Board sizes

Board Width:1200-3600mm,

Board Thickness:3-40mm,

Length:Customzied.

We could design the machine and mould according to your sizes.

Machine details

Q1: What is PP sheet? What are the classifications of PP sheets?

PP sheet (polypropylene sheet) is a semi-crystalline plastic sheet made primarily of polypropylene through processes such as extrusion molding. Its hardness is higher than polyethylene (PE), and its melting point is superior. PP sheets are mainly classified as follows:

Pure PP sheet: Low density, easy to weld and process, with excellent chemical resistance, heat resistance, and impact resistance. It is non-toxic and odorless, making it one of the most environmentally friendly engineering plastics currently available.

Extruded polypropylene (PP) sheet: A general-purpose plastic sheet made through processes such as extrusion, calendering, cooling, and cutting.

Glass fiber reinforced PP sheet (FRPP sheet): Reinforced with 20% glass fiber, its strength and rigidity are doubled compared to pure PP. It has good heat resistance, low-temperature impact resistance, corrosion resistance, arc resistance, and low shrinkage.

Foamed PP sheet: A new type of lightweight material made using supercritical carbon dioxide gas foaming technology, with a density range of 0.10-0.70 g/cm³ and a thickness of 1-20mm.

PP Hollow Core Board/Hollow Grid Board: With a grid-shaped cross-section, it is lightweight, non-toxic, pollution-free, waterproof, shockproof, and corrosion-resistant, with a service life 4-10 times longer than corrugated cardboard.

Q2: What are the common specifications and dimensions of PP boards?

PP board thickness ranges from 0.5 to 100 mm, and the maximum width is 2000 mm. Common colors include natural, beige, and green, and other colors can be customized according to customer requirements.

Q3: How does a PP board machine (extrusion production line) work?

The working principle of a PP board machine is to heat and melt PP granules, then push them through an extruder screw to a die for forming. After cooling, shaping, and cutting, PP boards are produced. The complete process flow is as follows: mixing → feeding → heating and plasticizing → extrusion molding → cooling → cutting → packaging. The core equipment is a single-screw extruder or a twin-screw extruder. By adjusting the screw speed and heating temperature, pipes, sheets, films, and other products can be produced stably.
